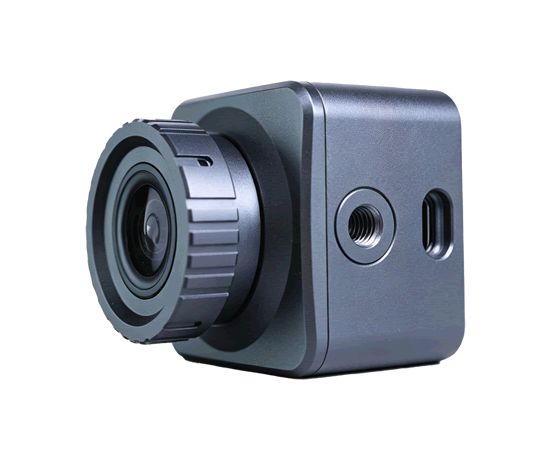

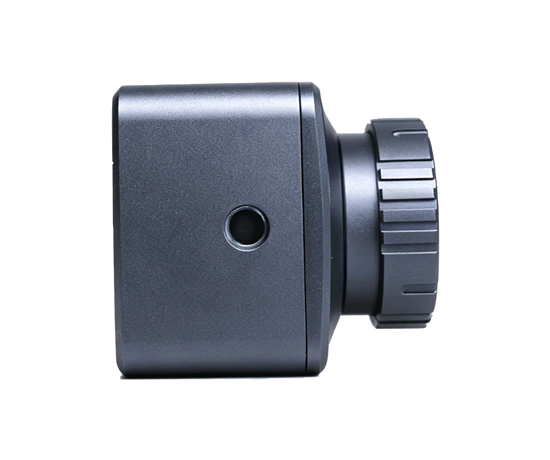

NK-YS-001 Starlight level anti shake low light full-color night vision device

The full-color night vision device is a multifunctional recording device that combines cutting-edge optical technology and intelligent AI algorithms. It breaks through the limitation of traditional night vision devices that only support black and white imaging, and can present clear full-color images in extremely low light or no light environments.

The body is lightweight and portable, supporting all-weather use, suitable for various scenarios such as home security, outdoor exploration, travel recording, pet monitoring, etc., meeting users' needs for high-definition nighttime image recording.

  • No fill light, truly no light and zero exposure

  • 0.003LUX extremely low light full-color imaging, with ultra clear and lossless details

  • 120km/h high-speed dynamic image stabilization, no dragging or lagging

  • Multi medium strong penetration, all-weather and scene adaptation

  • Description
  • Parameter
  • Reserve

NK-YS-001 is a portable digital full-color imaging terminal designed for low light environments. The product adopts a high-sensitivity color image sensor and ISP/AI image processing to achieve low light full-color observation and recording in the presence of weak ambient light. It emphasizes the ability of low light full-color without fill light, wide dynamic range, high-speed movement without ghosting, portable installation, and Type-C wired connection.

Core no fill light low light full-color (0.003lux)+High definition low latency (120dB wide dynamic+120km/h no ghosting)+Mobile video recording (low shake resistance)+High penetration+Multi scene use (easy installation)

  • Ultra low illumination full-color: The series data has a nominal minimum illumination of 0.003 Lux, without active infrared lights or other supplementary lighting; Relying on weak ambient light such as starlight, moonlight, and ambient lights for imaging.

  • High definition and low latency: 1920 × 1080P real-time output, supports up to 2K output, 30 FPS; The end-to-end delay provided by the data is approximately 65-80 ms.

  • 120 dB Wide Dynamic: With adaptive exposure, highlight suppression, and anti overexposure control, it can handle high contrast scenes such as car lights and alternating brightness.

  • High speed movement without ghosting: A dynamic imaging test with a maximum movement speed of approximately 120 km/h was recorded, with a focus on no ghosting or image loss.

  • Wired connection and storage: The current standard configuration for mass production is mainly Type-C wired direct connection; MicroSD has a maximum capacity of 256 GB and supports video recording.

  • Portable installation: 1/4 inch standard interface, can be connected to vehicle brackets, back clips, power clips, head mounted devices, selfie sticks, etc.

  • Wide environmental adaptability: working temperature -40 ℃~+70 ℃, humidity<95% (no condensation).

Performance Parameter
System structure Dual-Core ARM Cortex A55@850MHz (3 DMIPS/MHz) 32KBI-Cache, 2TOPS Computing Power
Image Sensor Color Image Sensor
Lens Specifications Horizontal: 93.1 degrees, Vertical: 49.6 degrees, Diagonal: 110.8 degrees.
Maximum Resolution 2 Million - 4 Million Pixels, Full Color
Video Frame Rate 30 FPS Real-time Video, Supporting H.265/H.264 Video Encoding
USB Interface TYPE-C
AI digital noise reduction Support
Screen function During the recording process, the screen is stopped for recording, and press any key while the screen is stopped to light up
Anti-overexposure design Full-target-area Adaptive Exposure Time Control
Visual Range in Complete Darkness The line of sight in complete darkness, approximately 150 meters.
Dim Light Range 1M to extremely long distances
Language CN/EN
Storage Supports MICROSD card storage (up to 256G)
Operating Temperature and Humidity -40℃~+75℃, humidity less than 95%(no condensation)
Application Scenarios Hunting, reconnaissance, night driving, safety and surveillance, outdoor activities, camping enjoyment, exploring caves, night fishing and boating, wildlife observation and photography, etc.
